Name: 6MP Viton / FKM Rubber sheets
Brand: Xian Meridian Material Tech Inc

Description

Fluoroelastomer(FKM) sheeting are especially recommended for fabrication into gaskets, seals, packings, washers, pads, shims, curtains, joints and other parts for use where severe operating conditions prevail. They are widely used in heavy industries such as oil and gas field, oil and petroleum refineries, steel works, chemical plants, mines and also in industries with special requirements.

PROPERTIES:
Extraordinary chemical resistance.
Self-extinguishable.
Excellent ozone and weather resistance.
Low deformation on compression at high temperature.

TEMPERATURE RANGE:
-30 °C - 230 °C

CHEMICAL RESISTANCE:
Of all synthetic rubbers, it is the most resistant to hydrocarbons, either aliphatic, aromatic or chlorinated. It has strong resistance to water and steam up to 150 °C Excellent resistance to acids and alkalis, including oxidants. Low resistance to esters and ketones.

The FKM-6M rubber sheeting is our best selling product, it contains a 66% fluorine content to maintain its fluid resistance at high temperatures and flexibility at low temperatures. This ensures its suitability for critical temperature sealing and corrosion protection applications.
THE BEST SELLING FKM-6M RUBBER SHEETING
FROM CHANGZHOU MERIDIAN

SPECIFICATIONS	UNITS	STANDARD	TYPICAL VALUES
Type	A Type Dipolymer Min. 66 Fluorine Content
Hardness	Shore A	ISO 7619	60±5	70±5	75±5
Specific Gravity	g/cm3	ISO 2781	1.98±0.05
Tensile Strength	MP	ISO 037	≥6
Elongation @ Break	%	ISO 037	≥200%
Tear Resistance	KN/M	ISO 34-1	≥24
Compression Set	%	ISO 815	＜55%
22hrs @ 175℃	%	ISO 815	＜55%
Temperature Range	-20℃ to 200 ℃ (5,000 hours)

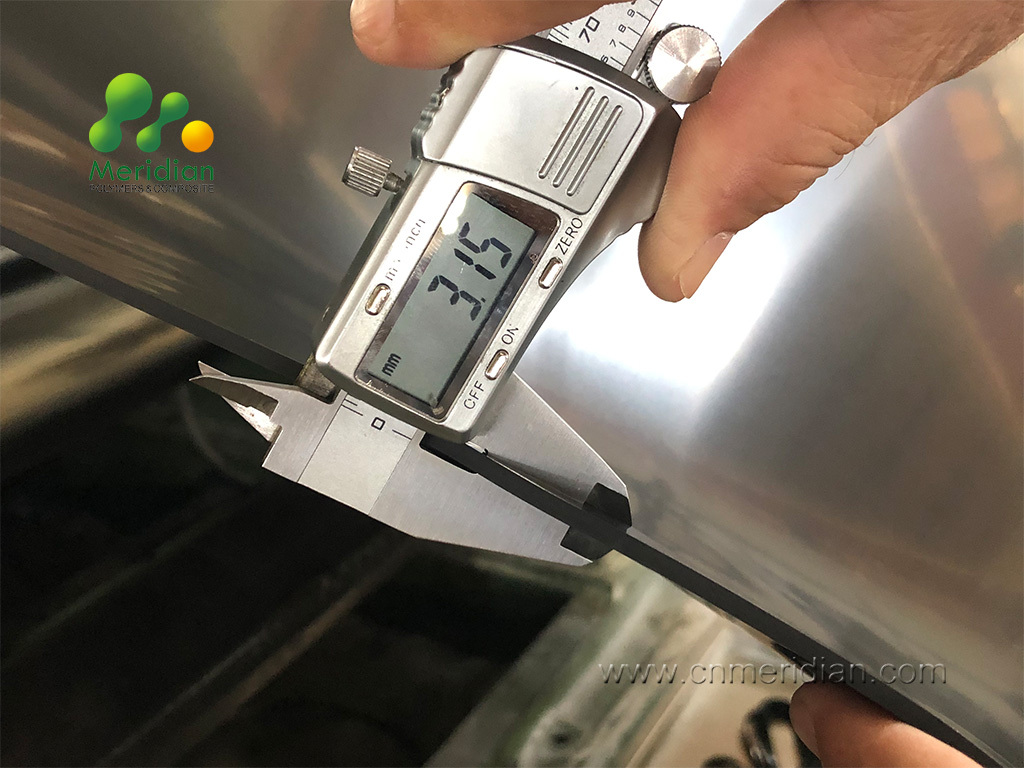

Available in thicknesses: 1mm to 25mm

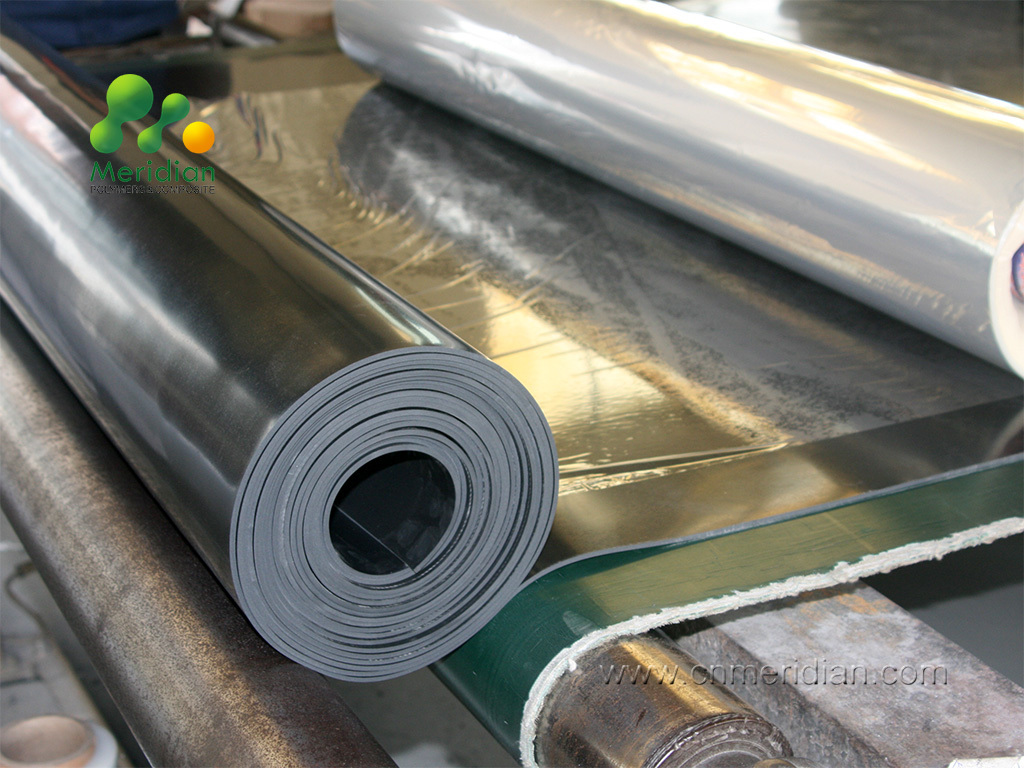

1mm to 6mm - Rolls: 1000mm -1200mm-2000mm wide x 10-20 meters long
8mm & 10mm – Rolls: 1000mm-1200mm wide x 5-10 meters long
Over 10mm thickness-Plates : 2500mm x 1000-2000 mm

All the Fluorous rubber products have “REACH”, “PAHS”, “CA Prop 65” certificate, certified by SGS, Intertek Corporation.

Information of a technical nature is based on laboratory tests which either Meridian conducts or sends to an independent laboratory for testing for determination of uses as requested in writing by customer. Meridian believes these to be reliable. However, Meridian has no control over the application of the material to, or part of, the final product and therefore, Meridian makes no express or implied warranty of result, fitness or merchantability. The customer should determine reliability for the end use or particular application.
