A rubber diaphragm is a flexible membrane designed to separate two chambers, enabling the transmission of pressure changes while preventing the mixing of substances between the chambers. These diaphragms are integral to various mechanical and fluid systems, offering precise control over fluid flow, pressure regulation, and sealing.
Key Functions of Rubber Diaphragms
- Sealing and Isolation: Rubber diaphragms create airtight or watertight seals between chambers, preventing the unwanted transmission of substances such as liquids, gases, or solutions.
- Pressure Regulation: They respond to pressure differentials by flexing, thereby controlling the flow rate or restricting fluid movement as needed.
- Actuation: In devices like actuators, diaphragms convert fluid pressure into mechanical motion, performing tasks such as opening or closing valves.
- Flow Control: In pumps and metering devices, diaphragms facilitate the transfer of fluids by creating changes in volume, drawing fluid into the chamber and expelling it under pressure.
- Safety Mechanism: In pressure relief valves, diaphragms deform when pressure exceeds a predetermined threshold, allowing fluid to escape and reducing pressure to safe levels.
- Pressure Sensing: Diaphragms can be utilized in pressure sensors to detect changes in pressure and provide feedback to control systems.
Materials Used in Rubber Diaphragms
The choice of material for a rubber diaphragm depends on the specific requirements of the application, including factors like chemical compatibility, temperature resistance, and mechanical properties. Common materials include:
- Natural Rubber: Offers high tensile strength and elasticity.
- Nitrile Rubber (NBR): Provides excellent resistance to oils and fuels.
- EPDM (Ethylene Propylene Diene Monomer): Known for its resistance to heat, ozone, and weathering.
- Silicone Rubber: Remains flexible over a wide temperature range and is resistant to aging.
- Neoprene: Offers good chemical stability and maintains flexibility over a wide temperature range.

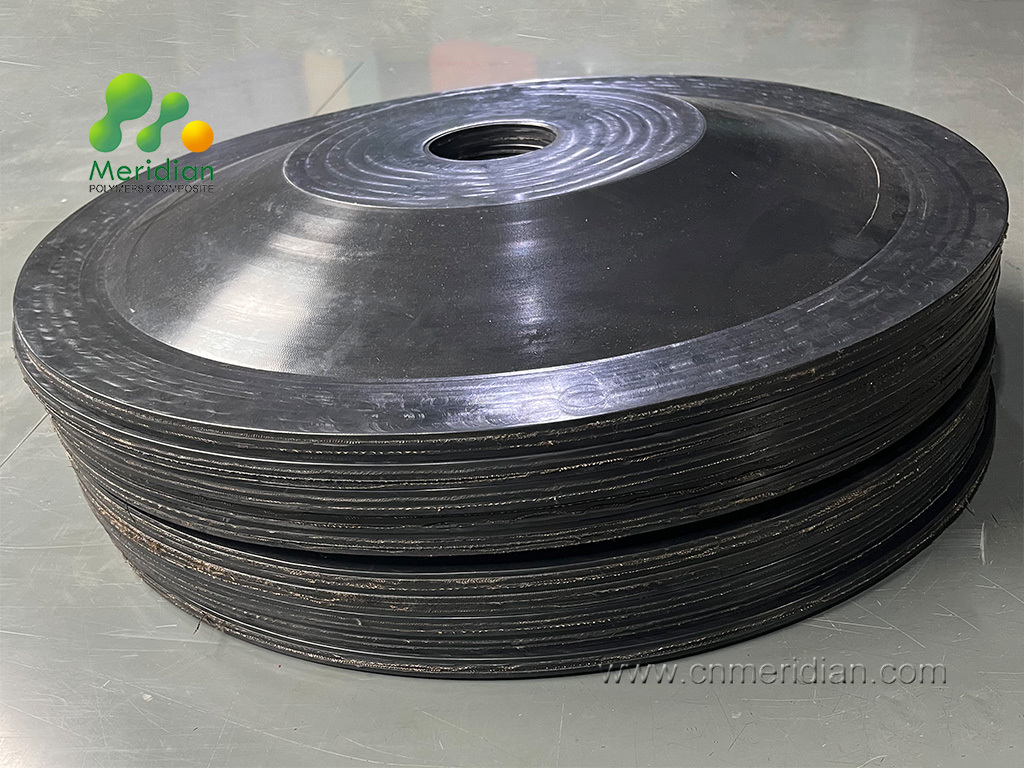

Some diaphragms are also fabric-reinforced to enhance durability, especially in high-stress applications.
Types of Rubber Diaphragms
Depending on the design and movement characteristics, rubber diaphragms can be categorized into several types:
- Flat Diaphragms: Simple, flat membranes used in applications with minimal movement.

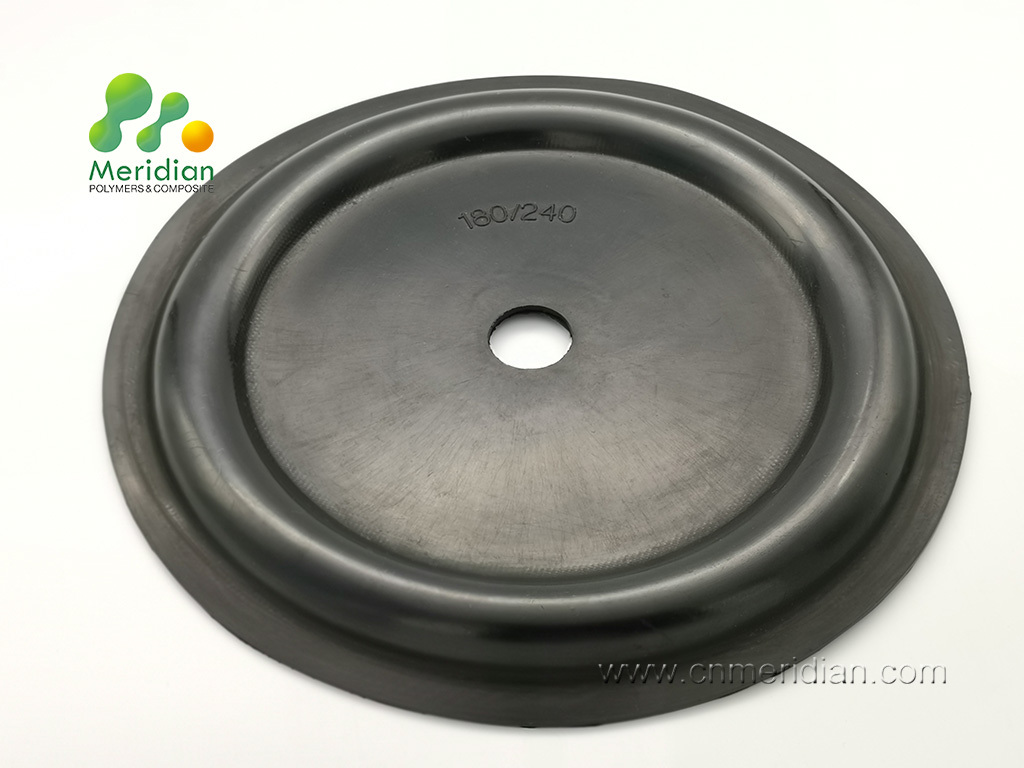

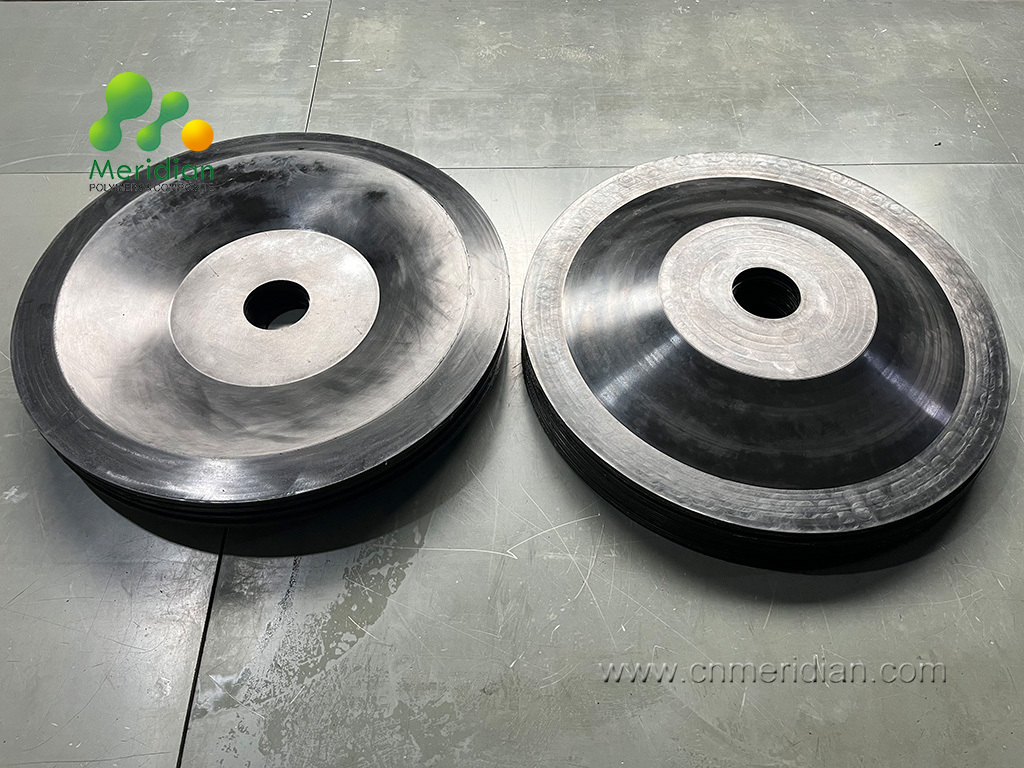

- Dished Diaphragms: Curved diaphragms that can accommodate larger movements.
- Rolling Diaphragms: Feature a flexible wall that allows for significant axial movement.
- Convoluted Diaphragms: Have multiple folds to provide high flexibility and large stroke capabilities.
In summary, rubber diaphragms are critical components in various systems, offering reliable sealing, pressure regulation, and actuation capabilities. Their adaptability to different materials and designs makes them indispensable across multiple industries.
