Meridian holds dedicated tooling for the majority of standard sizes and tables, and can also manufacture special or one-offs to your own measurements and specifications.
| Items |
Gaskets for Flange Packing |
| Color |
Black |
| Thickness |
1/8"-1/4 " |
| Size |
1/2" - 28" (OD 48mm to 813 mm) |
| Shape |

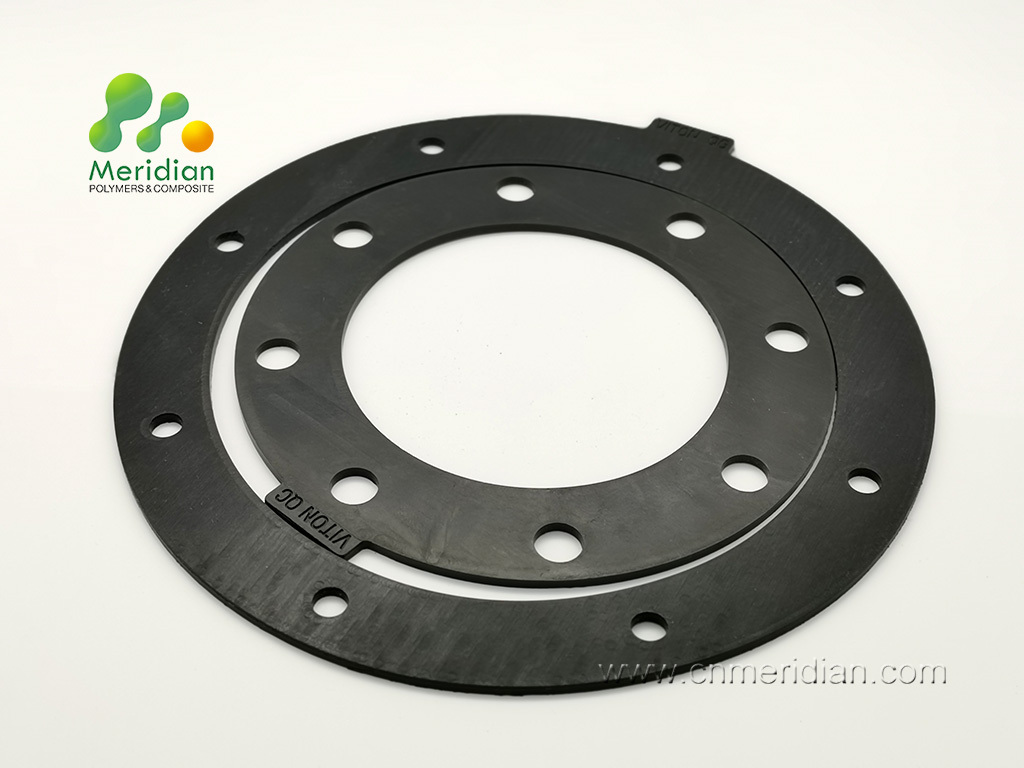

Full Face Gasket or Flat Ring Gasket |
| Surface Finish |
Smooth |
| Product Type |
Moulded Flange Gaskets |
| Diameter |
The maximum diameter of customization upto 2000mm |
| Range |
Class 150, Class 300 |
| Model Name/Number |
Pipe Gasket |
| Material |
FFKM, FEPM/AFLAS, Viton/FKM, FVMQ,VMQ,ACM,CSM,ECO
EPDM, Neoprene, Nitrile, SBR, Natural |
Why Choose Us – A Manufacturer’s Advantage
Choosing the right flange rubber gasket supplier goes beyond simply matching dimensions; it requires confidence in quality, capability, and technical support. As a dedicated manufacturer, we offer distinct advantages that set us apart:
- Extensive Mold Inventory – We maintain a complete set of molds ranging from 1/2" to 28", covering the most commonly used flange standards (ANSI, DIN, EN, JIS, etc.). This allows us to deliver standard-size gaskets quickly without the cost or delay of custom tooling.
- Custom Large-Diameter Capability – For projects that exceed standard dimensions, we have the in-house capacity to produce gaskets larger than 28". Our press equipment can manufacture sealing rings up to 2 meters in outer diameter, ensuring we can handle specialized requirements for heavy industry, water treatment,
- In-House Rubber Compounding & Laboratory – Quality starts at the raw material stage. We formulate and mix our own rubber compounds, giving us full control over consistency, performance, and traceability. Our independent laboratory conducts physical, chemical, and aging tests to verify that every batch meets or exceeds the required specifications
- For the development of special materials, we can provide materials that have obtained certifications such as FDA, WRAS, UL94-V0, and EN45545. We can also offer rubber materials that are detectable by metal detectors and X-ray machines.
These manufacturing capabilities translate into tangible benefits for our customers: shorter lead times, flexibility for custom orders, certified material traceability, and the ability to collaborate directly with the team that formulates, molds, and tests the product.
