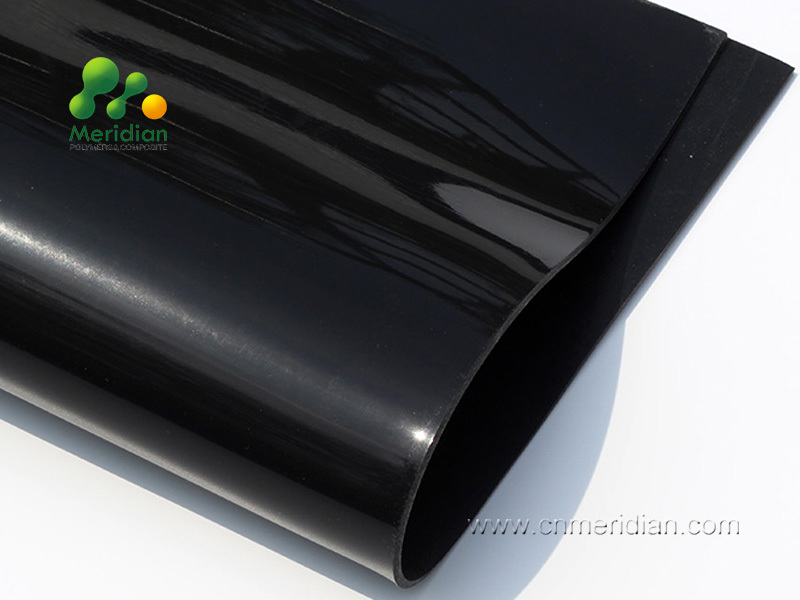

Name: HNBR / HSN Rubber Sheets
Brand: Xian Meridian Material Tech Inc
Availability: InStock
Rating: 5 (1 reviews)

Description

HNBR / Hydrogenated Butadiene-acrylonitrile Rubber is partially, completely hydrogenated acrylonitrile-butadiene rubber. exceptional performance include,

Excellent long-term temperature resistance obtainable with HNBR
Excellent resistance to many automotive fluids such as engine oils, ATF, power steering fluid and coolants
Excellent resistance to many modern fuels including biodiesel
Resistance to hydrogen sulfide and amines
Resistance to acids and alkalis
Resistance to steam
Resistance to ultraviolet (UV) radiation
Low noise/vibration transmission

Examples of articles where HNBR can be used to advantage are grouped together by industry:

Automotive Industry
Oil Industry
Electrical Industry
Mechanical Engineering Industry
Ship Building Industry

We can provide you two grade standard HNBR rubber sheeting normally, any customized Technical Specification is welcomed.

HNBR7010 rubber sheet
HNBR8010 rubber sheet

Technical Specification

Type	ITEM No.	Color	Specific	Hardness	Tensile	Elongation	TEARING STRENGTH (KN/m)	Temperature
			Gravity	(shore A)	Strength	at Break		Range
			(g/cm³)		(Mpa)	(%)		(°C)
HNBR	70B/10M	Black	1.4±0.05	70±5	>10	>400	>50	-45~160
HNBR	80B/10M	Black	1.45±0.05	80±5	>10	>300	>40	-45~160

Over 10mm thickness-Plates : 2500mm x 1000-2000 mm
OTHER COLOURS, HARDNESS AND TECHNICAL SPECIFICATIONS CAN BE AVAILABLE UPON REQUEST
8mm & 10mm – Rolls: 1000mm-1200mm wide x 5-10 meters long
1mm to 6mm - Rolls: 1000mm -1200mm-2000mm wide x 10-20 meters long
Available in thicknesses: 1mm to 25mm
Information of a technical nature is based on laboratory tests which either Meridian conducts or sends to an independent laboratory for testing for determination of uses as requested in writing by customer. Meridian believes these to be reliable. However, Meridian has no control over the application of the material to, or part of, the final product and therefore, Meridian makes no express or implied warranty of result, fitness or merchantability. The customer should determine reliability for the end use or particular application.
