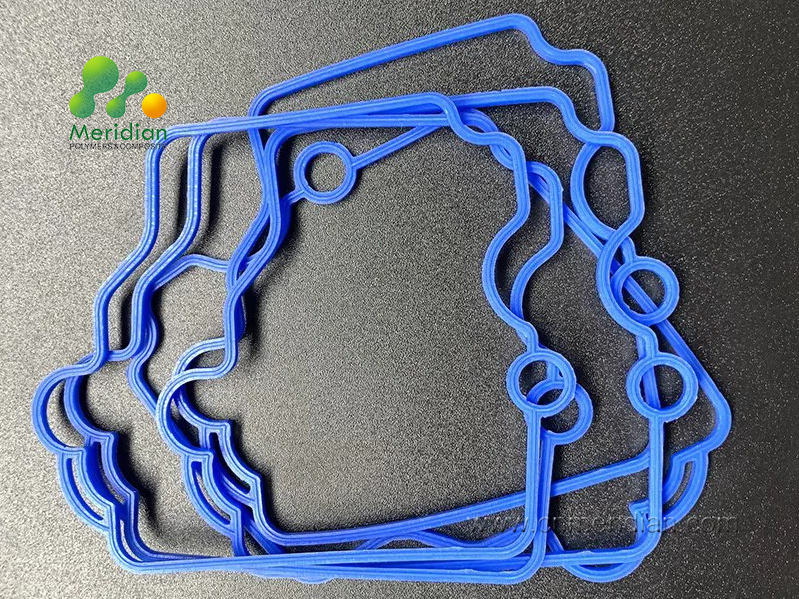

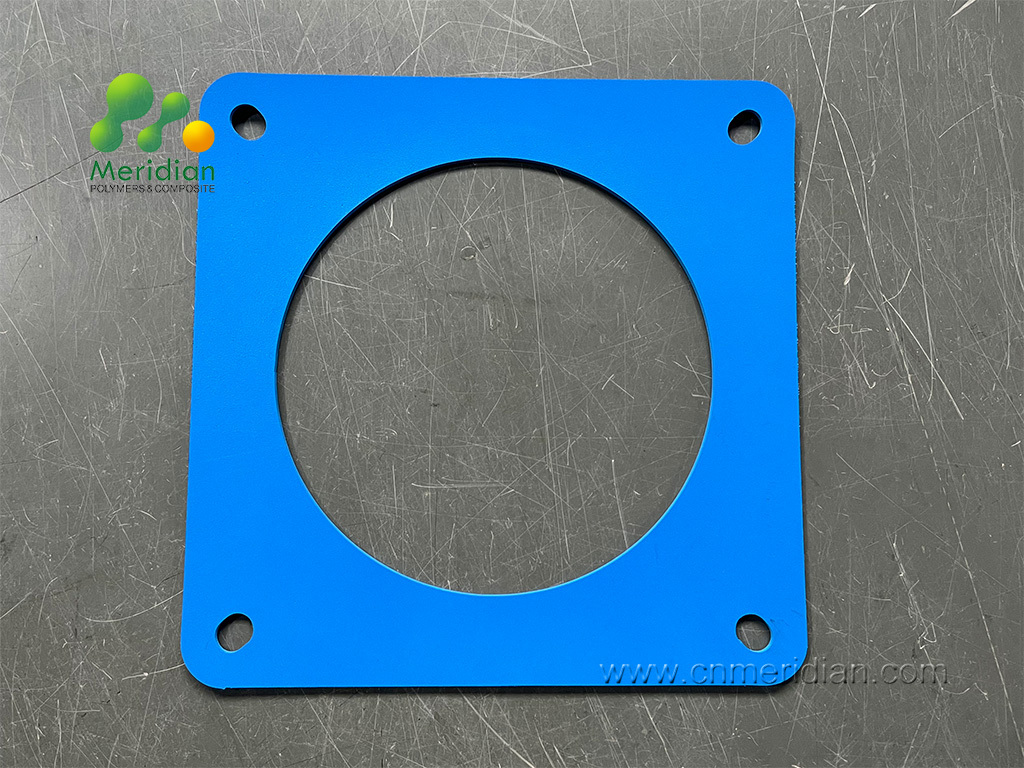

Metal & X-ray Detectable Gaskets are safety sealing solutions specifically designed for the food, beverage, and pharmaceutical industries. By uniformly incorporating special metal particles or high-density additives into the rubber substrate, these gaskets ensure that—should they undergo wear, aging, or fragmentation—they can be precisely detected by inspection equipment on the production line, thereby fundamentally preventing foreign objects from contaminating the final product.
Detection Principles & Sensitivity1. Metal Detection CapabilityMetal-detectable gaskets incorporate finely dispersed metallic particles within the elastomer matrix. These particles create a detectable signal when passing through electromagnetic fields generated by metal detectors.
Detectable by standard industrial metal detectors (ferrous, non-ferrous, stainless steel detection systems)
Modern systems can identify very small contaminants depending on system calibration and product conditions
Multi-frequency detection technology further improves sensitivity to smaller fragments
Key Insight:
Metal detection is highly effective for conductive contaminants, but performance may vary depending on product properties such as moisture, salt content, and temperature (known as “product effect”).
2. X-Ray Detection CapabilityX-ray detectable gaskets are formulated to have higher density and atomic mass contrast, making them visible under X-ray inspection systems.
Detection is based on differences in material density and X-ray absorption
Capable of detecting non-metallic contaminants (e.g., dense rubber compounds, plastics, glass, bone)
Advanced X-ray systems can detect contaminants as small as ~0.4 mm in optimized conditions
Key Insight:
X-ray inspection provides broader detection capability and is not affected by product conductivity, moisture, or packaging type.
3. Typical Detection Sensitivity (Industry Reference)Detection Method Typical Sensitivity Range Influencing Factors
Metal Detection ~0.5–2.0 mm (depending on system) Product conductivity, detector frequency, line speed
X-ray Detection ~0.4–1.5 mm (optimized conditions) Density contrast, product thickness, system power
Additionally, specially engineered detectable elastomers can allow fragments as small as 1 mm to be reliably detected in real production lines.
The gaskets of this type manufactured by Meridian not only possess "detectable" properties but also perfectly retain the superior physical sealing characteristics of traditional rubber:
- High Compliance: Strictly adheres to U.S. FDA 21 CFR 177.2600 standards and EU EC 1935/2004 food contact regulations.
- Comprehensive Material Selection: Available in a full range of materials—including EPDM, NBR, Silicone, and FKM (Viton)—to meet diverse requirements regarding temperature resistance and chemical compatibility.
- Visually Distinctive: Typically produced in blue (the industry-standard safety color); since blue rarely occurs naturally in most food products, this allows for an initial, optically assisted screening process, even with the naked eye.
- Superior Resistance: Capable of withstanding the corrosive cleaning agents and high-temperature steam environments commonly utilized during CIP (Clean-in-Place) and SIP (Sterilize-in-Place) processes.
ApplicationsMetal & X-ray detectable gaskets are widely used in industries with strict hygiene and safety requirements, including:
- Food & Beverage Processing
- Dairy & Meat Processing
- Pharmaceutical & Biotechnology
- Nutraceutical Production
- Cosmetic Manufacturing
Typical applications include:

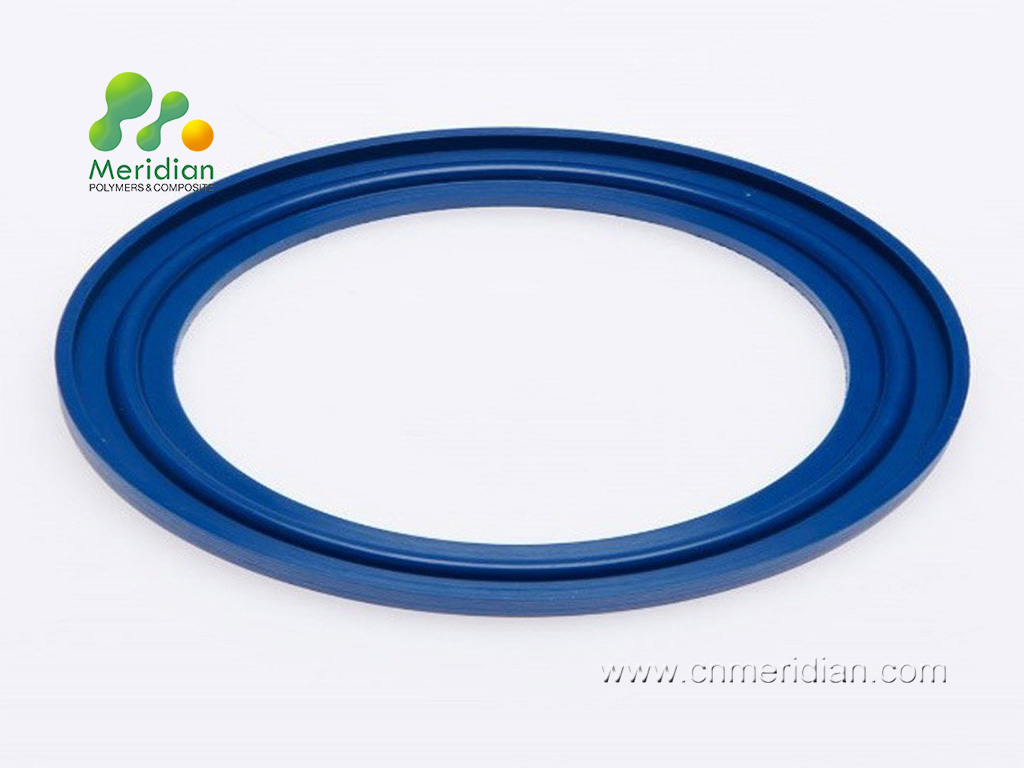

- Sanitary pipeline systems (Tri-Clamp connections)
- Mixing and filling equipment
- Pumps, valves, and filtration systems
- Clean-in-place (CIP) and sterilization processes
