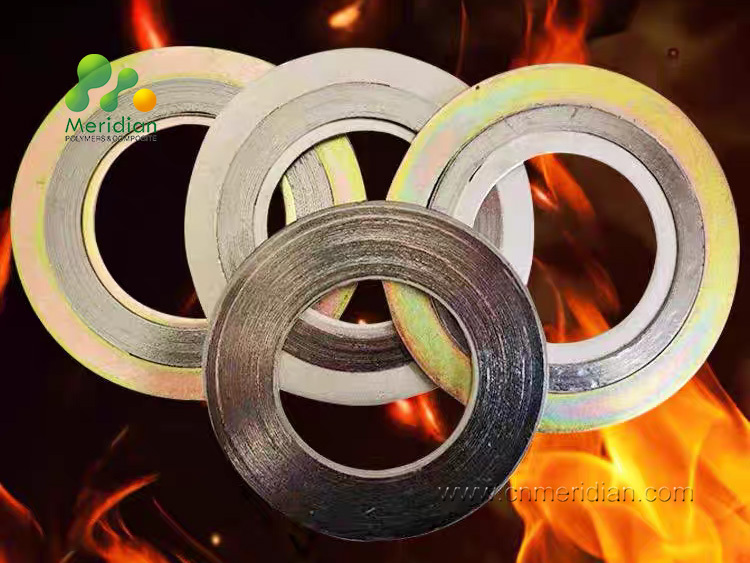

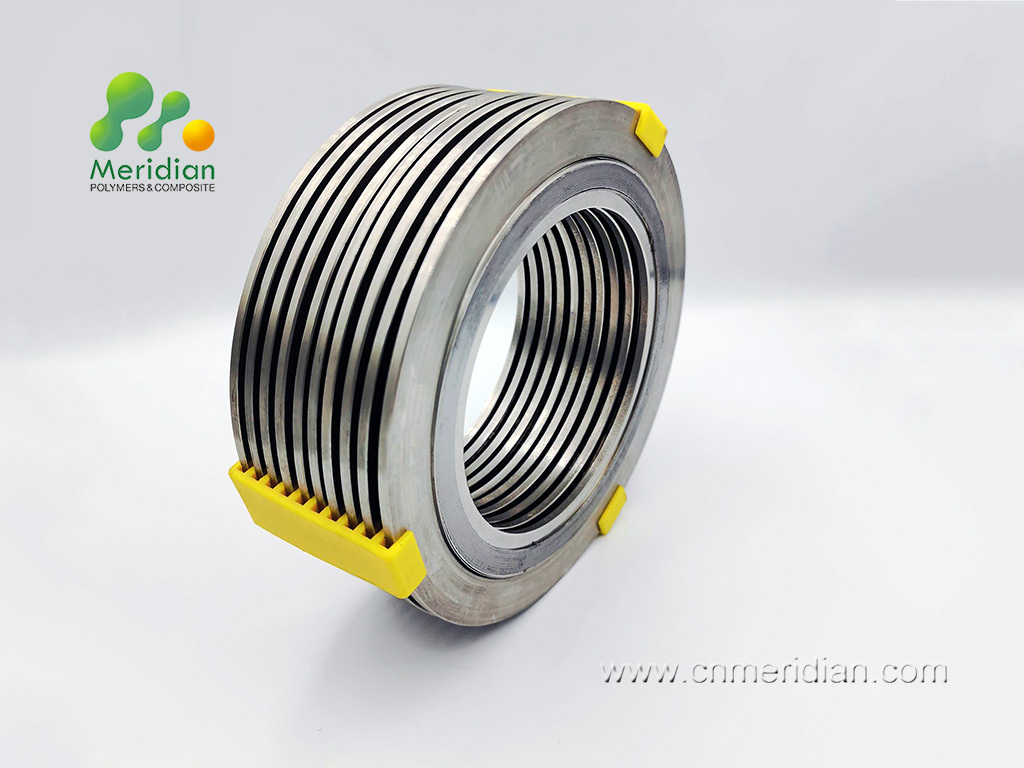

Spiral-Wound Gasket

Available in several standard shapes
Style Product Description
W Winding only, without inner and outer rings.
RW Spiral Wound Gasket with outer ring.

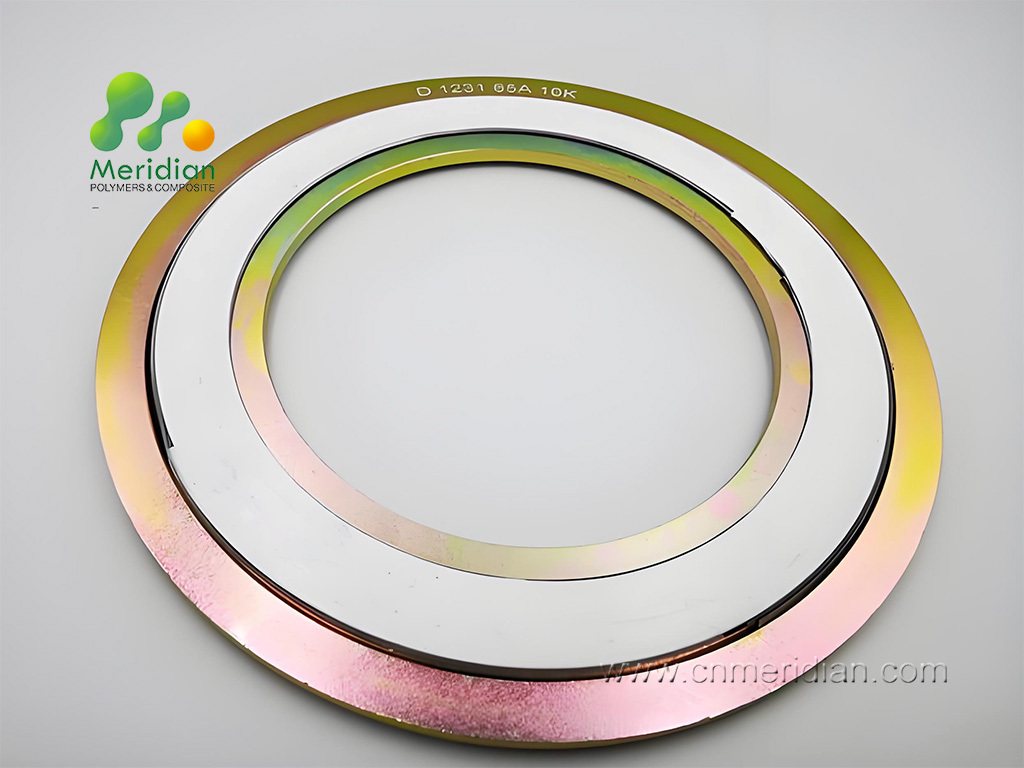

RWI Spiral Wound Gasket with inner and outer ring.

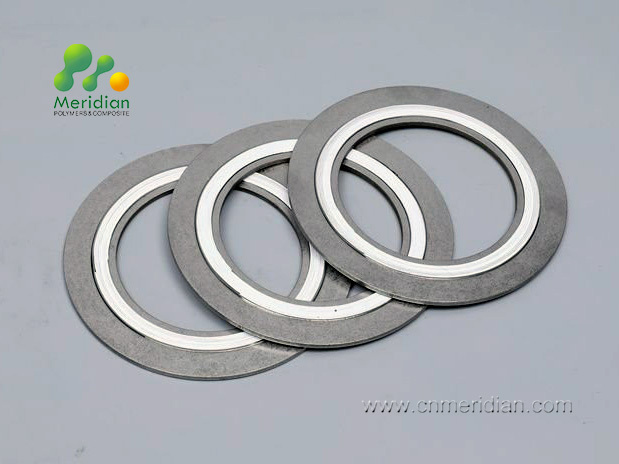

WI Spiral Wound Gasket with inner ring.
RH Spiral Wound Gasket with Ribs for Heat Exchanger
RS Spiral Wound Gasket with Special Shape

These gaskets are manufactured following International specifications such as ASME B16.20, EN 1514-2, DIN, JIS B 2404, etc.

  • Spiral-Wound Gasket
  • Spiral-Wound Gasket
  • Spiral-Wound Gasket
  • Spiral-Wound Gasket

Description

Spiral wound gaskets are high-performance sealing solutions designed for demanding flange connections. They are manufactured from alternating layers of pre-formed metal strip and soft filler material wound in a precise spiral configuration. When compressed, the V-shaped metal windings act as a resilient spring, maintaining seal integrity under fluctuations in pressure, temperature, and vibration.

This composite structure offers an optimal balance of strength and flexibility—providing greater durability than soft gaskets under severe service conditions while remaining more compliant than solid metal gaskets. The design allows extensive material customization: filler materials such as graphite, PTFE, or non-asbestos fibers can be selected for chemical compatibility, and the winding configuration can be tailored for low-load or high-integrity applications.

Performance can be further enhanced with optional inner and outer guide rings. The outer ring centers the gasket within the bolt circle and limits compression, while the inner ring reinforces structural stability and protects the sealing element from flange erosion or turbulence.

Combining exceptional mechanical strength with elastic recovery, spiral wound gaskets are extensively used in refineries, chemical and petrochemical plants, power generation facilities, aerospace systems, and a wide range of valve and piping assemblies.

Common Metal Used
Metal Material Minimum Maximum Abbreviation
304SS -320 -195 1400 760 304
316LSS -150 -100 1400 760 316L
321SS -320 -195 1400 760 321
347SS -320 -195 1700 925 347
Carbon Steel -40 -40 1000 540 CRS
Alloy 20 -300 -185 1400 760 A-20
Hastelloy B2 -300 -185 2000 1090 HAST B2
Alloy C276 -300 -185 2000 1090 HAST C276
Incoloy 825 -150 -100 1600 870 IN 825
Inconel 625 -150 -100 2000 1090 INC 625
Inconel X750 -150 -100 2000 1090 INC X750
Monel 400 -200 -130 1500 820 MON
Nickel 200 -320 -195 1400 760 Ni
Titanium -320 -195 2000 1090 Ti


Common Filler Used
Filler Material Minimum Maximum Abbreviation
℉
Flexible Graphite -350 -212 1000 550 F.G
Polytetrafluoroethylene -400 -240 490 250 PTFE
Mica -328 -200 1472 800 MI
Non Asbestos -184 -120 750 400 NA
Ceramic -350 -212 2000 1100 CER
