Vulcanization O-Rings

Name: Vulcanization O-Rings
Brand: Xian Meridian Material Tech Inc

In essence, vulcanized O-rings bridge the gap between standard molded O-rings and cord stock. By cutting cord to length and joining its ends via heat/pressure bonding, you gain the ability to deliver a strong, continuous ring of any size in a variety of materials, ideal for static applications where standard molded sizes don’t fit. For a sealing-product supplier, including this offering means you can meet custom-size demands, large diameters, and quick-turn requests without investing in full mold tooling for each unique size.

GET A QUOTE

Description

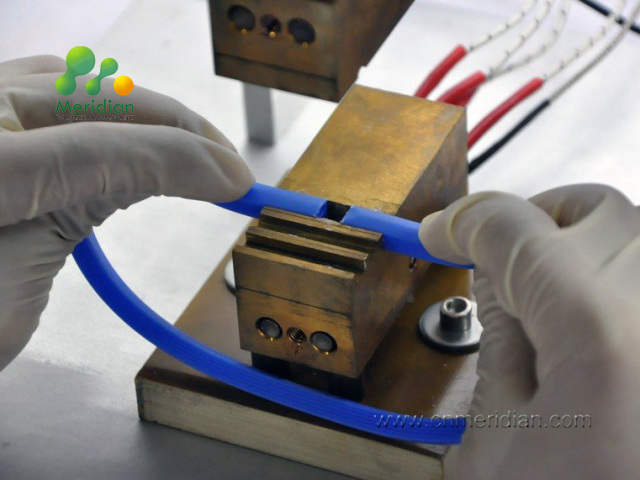

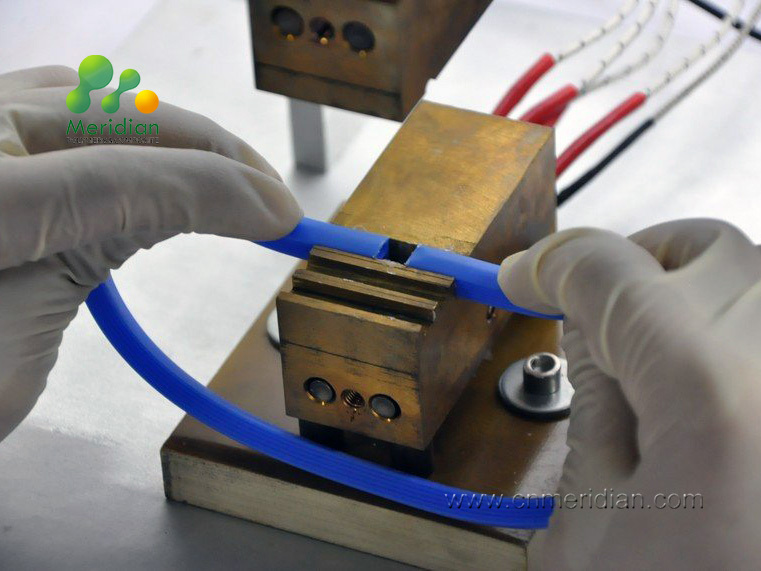

Vulcanized O-rings are sealing rings made by taking a length of extruded elastomer cord (of round or other profile), cutting it to the required circumference (for a given inside diameter), and then joining the two ends by a process of heat, pressure, adhesive (or sometimes uncured compound) to form a continuous ring.

Unlike standard molded O-rings (which are shaped in a mold as a closed loop), these are essentially custom-made by connecting cord ends, so you can produce any inside diameter or custom size as required.

Typical Uses & Applications
Large flanges, lids, tanks, or vessels where the inside diameter is too large for standard molded rings. O-rings produced in this way are only suitable for static sealing.

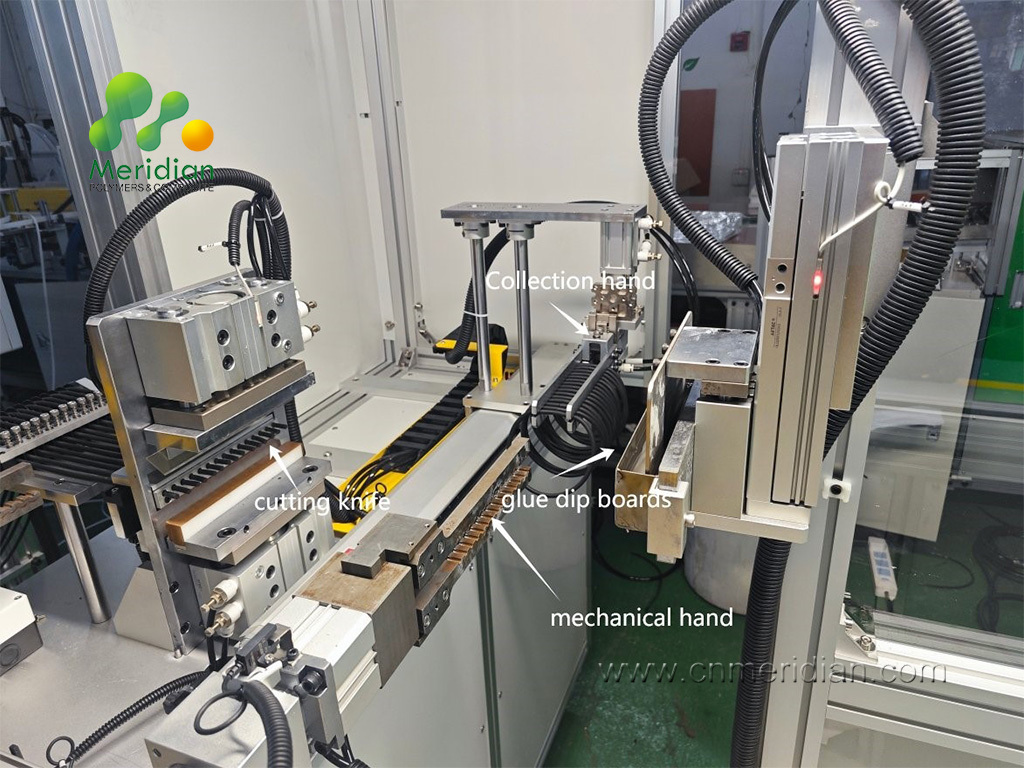

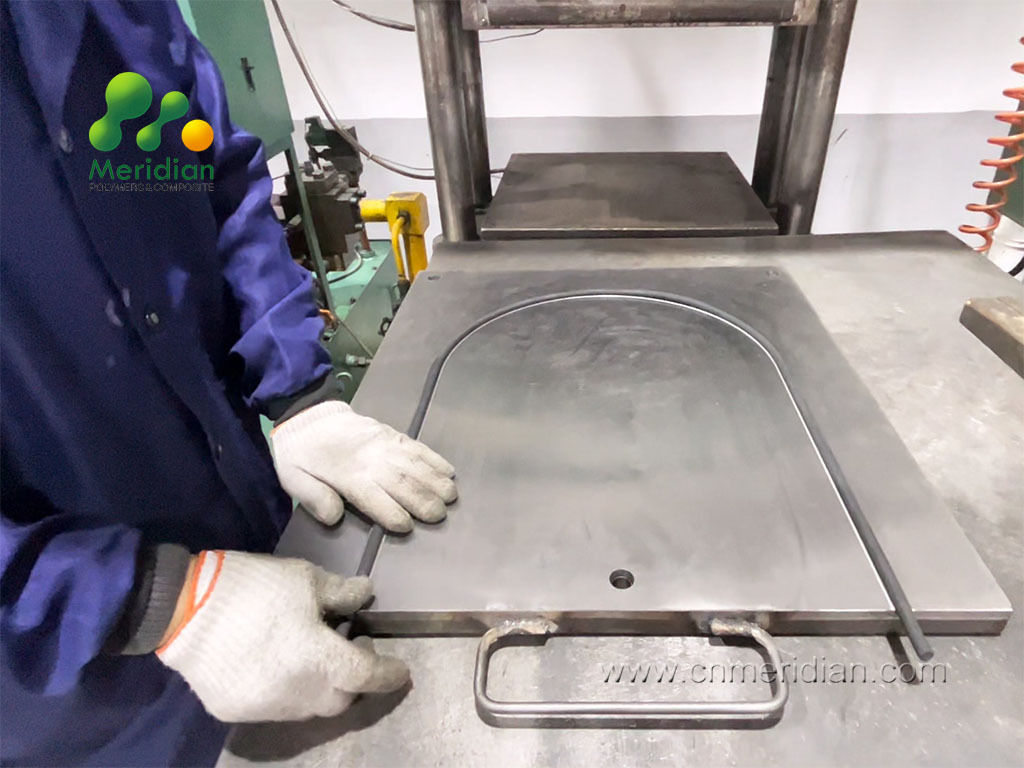

We can use three production methods to produce O-rings: Molded Joint, Precision Vulcanization, and Standard Vulcanization. The following is a comparison of the three production methods.

Evaluation Criteria	Molded Joint	Precision Vulcanization	Standard Vulcanization
Production Efficiency	Low	High	High
Product Yield	Low	High	High
Unit Cost	High	Low	Low
Tolerance (per ISO 3601)	E1-E3	E1-E3	E1-E3
Static Sealing	✅ Suitable	✅ Suitable	✅ Suitable
Dynamic Sealing	❌ Not Recommended	❌ Not Recommended	❌ Not Recommended
Gas Sealing	❌ Not Recommended	❌ Not Recommended	❌ Not Recommended
Vacuum Sealing	❌ Not Recommended	❌ Not Recommended	❌ Not Recommended
High-Pressure Sealing	❌ Not Recommended	❌ Not Recommended	❌ Not Recommended
FDA / Food Grade	❌ Not Suitable	❌ Not Suitable	❌ Not Suitable
Key Advantages	• No mold/tool cost • Option for prototyping and basic applications with >15% compression • Performance can be similar to fully molded	• Best value for prototyping and basic applications • Proprietary method yields consistent quality • Angled joint increases bond surface area and strength	• Rubber-based adhesive • Flexible compressible joint • Low cost for basic static applications
Key Limitations / Disadvantages	• Inconsistent quality • Potential under-fill/over-fill at the joint increases leak risk • Parting line and flash misalignment • Not recommended for vacuum or high pressure	• Higher cost than standard vulcanization • Longer lead times than standard vulcanization • Potential adhesive excess and joint misalignment • Not recommended for vacuum, high-pressure, or dynamic seals	• Inconsistent quality • Potential for excessive adhesive and misalignment at the joint • Only for basic static, low-pressure, short-term applications
