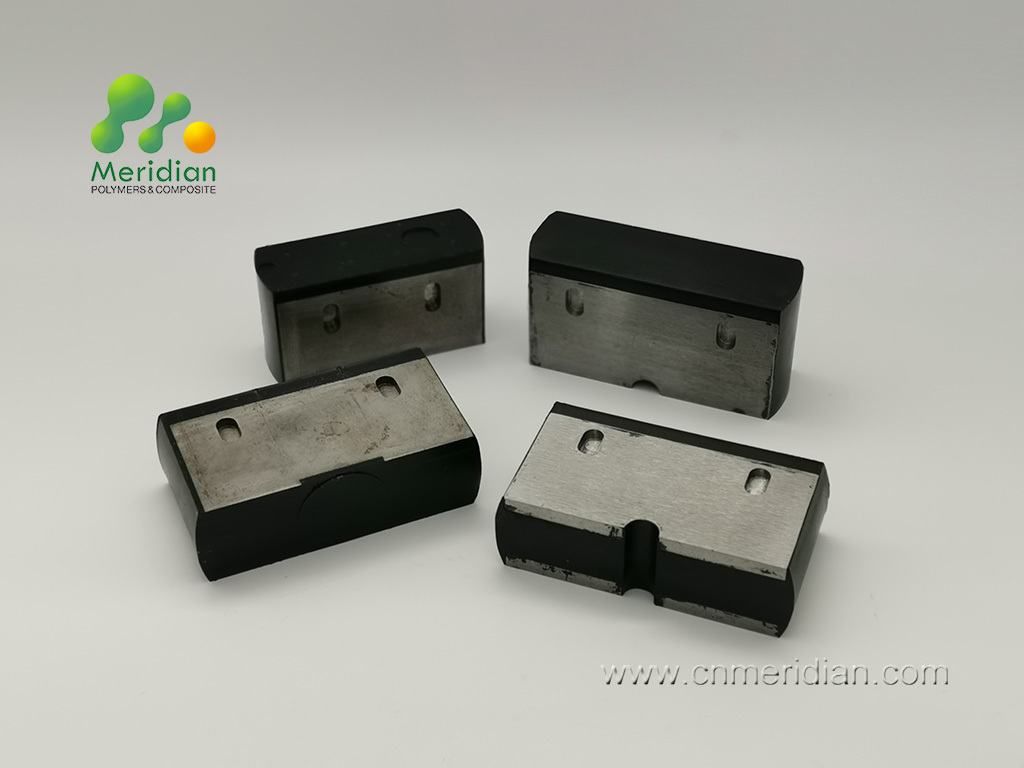

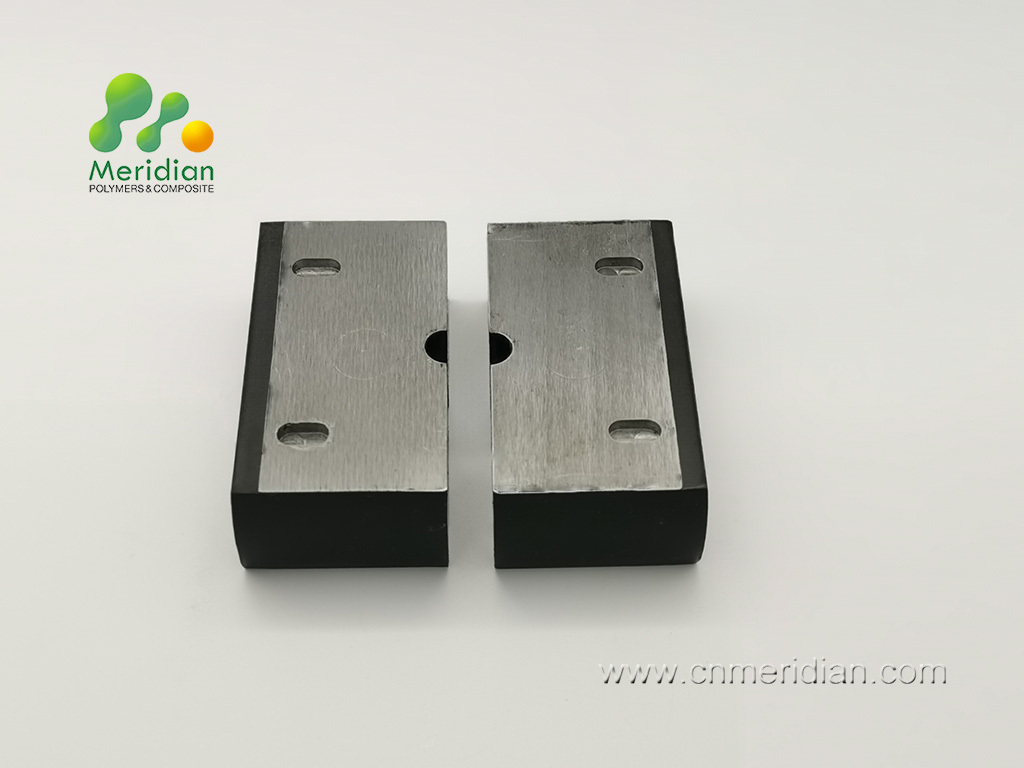

Meridian provides Inner Wireline Valve Seals as per customer requirements. These seals that are designed to withstand extreme well conditions-even where high percentages of H2S and CO2 are present. Our special manufacturing process ensures that the rubber and metal plates remain bonded to each other even under the most severe applications.
The Inner Wireline and Coil Tubing Ram Seals can be blind for wire line, slick line and stranded cables operations, line sized from 3/16"up to 1.9".
Multi-Line Inner Ram Seals

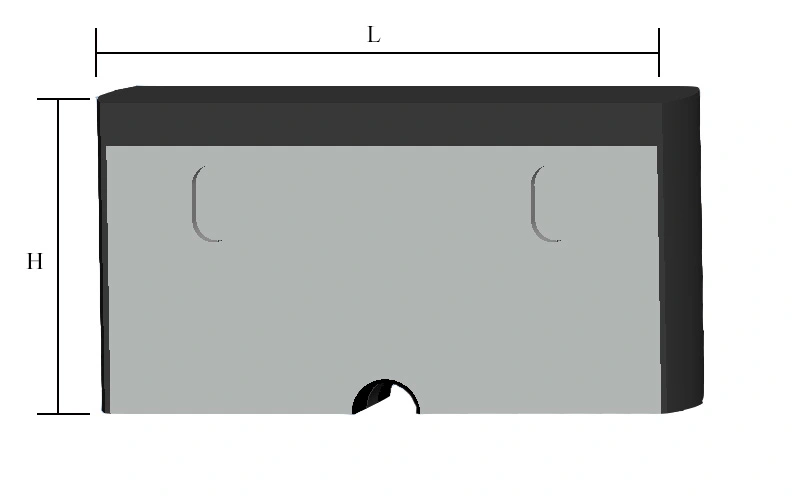

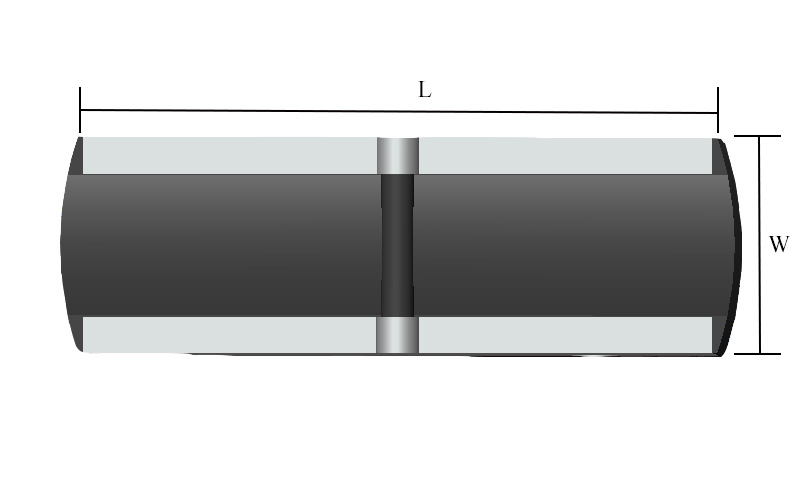

| Wireline Valve Size | Line Size | Rubber P/N | Dim. L | Dim. H | Dim. W | Nitrile Rubber | Hydrogenated Butadiene-Acrylonitrile Rubber | Fluororubber |
| 3" | 0-3/8" | OLWV3000RSMWL-0375 | 3.490" | 1.840" | 1.120" | NBR | HNBR/HSN | FKM/VITON |
| 4" | 0-3/8" | OLWV4000RSMWL-0375 | 4.980" | 2.055" | 1.370" | NBR | HNBR/HSN | FKM/VITON |
| 5" | 0-3/8" | OLWV5000RSMWL-0375 | 5.980" | 2.730" | 1.480" | NBR | HNBR/HSN | FKM/VITON |
All the above-mentioned sizes are just for reference. Any sizes can be available upon request.
