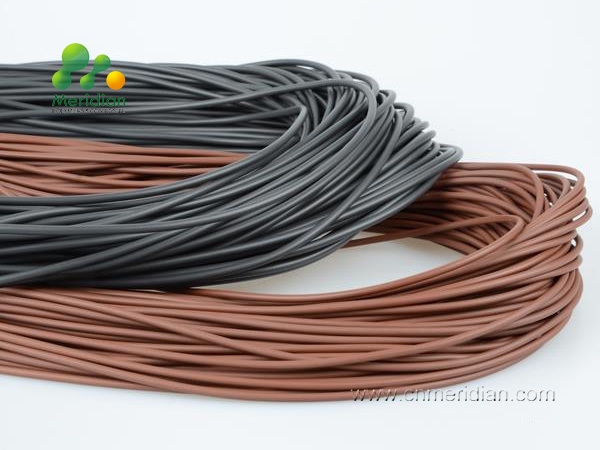

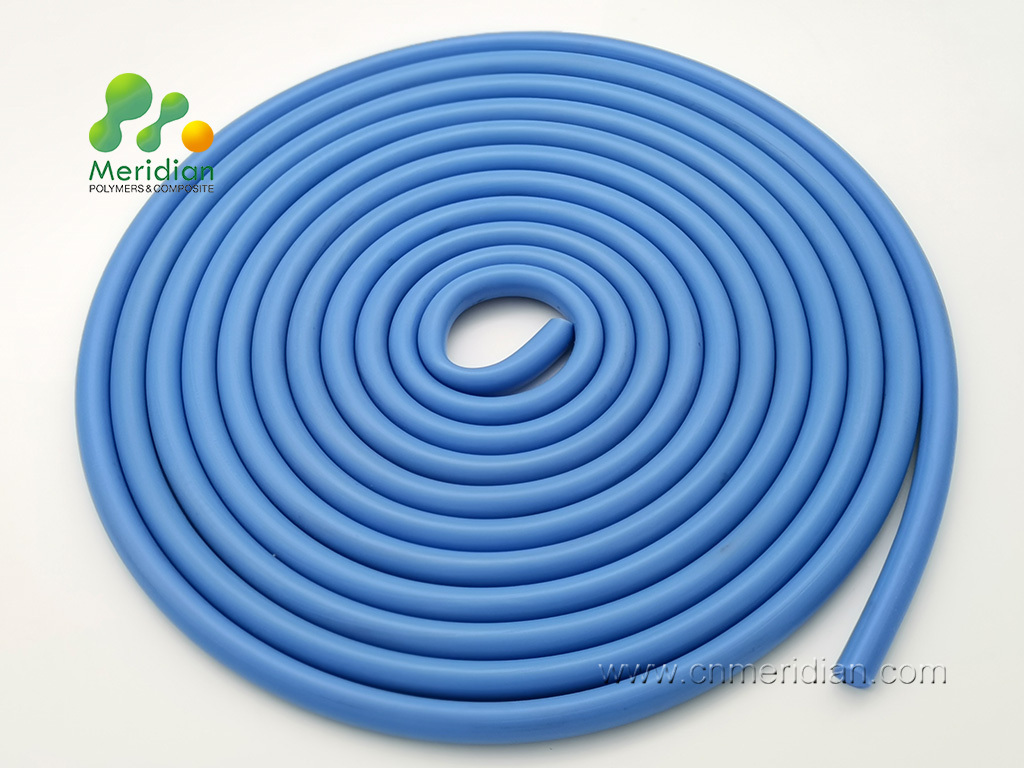

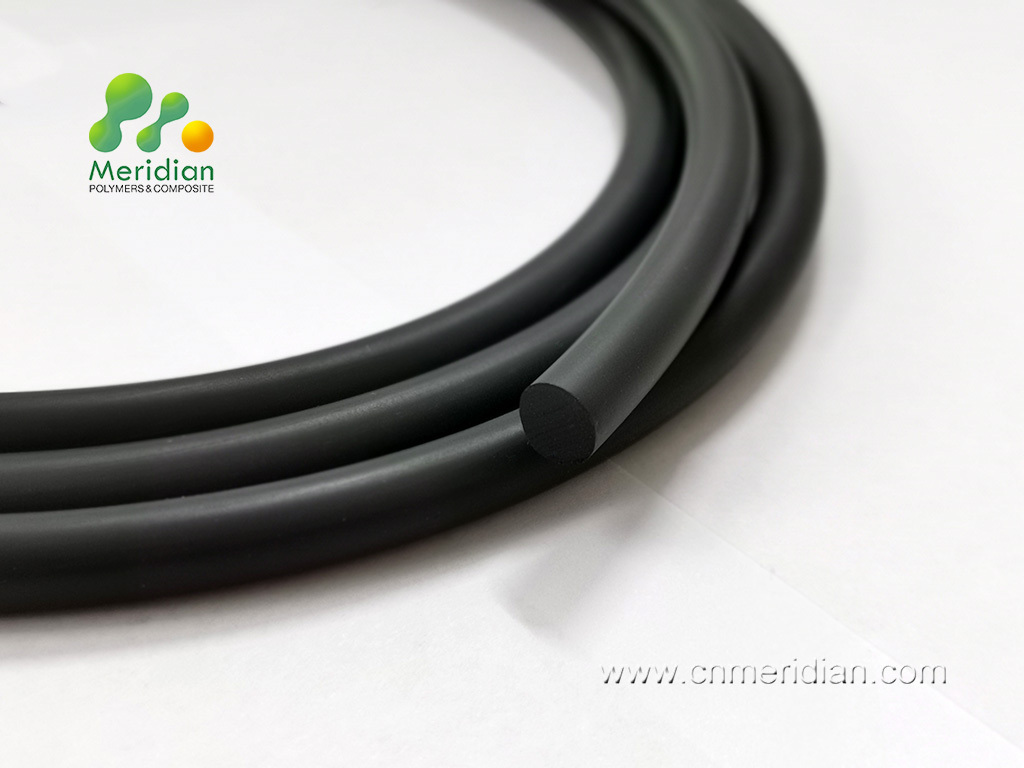

O-ring cord is a continuous line of high-quality elastomeric material; achieve their static sealing effect from the deformation of the cross section after installation and compression into the installation space. It’s specifically designed to be spliced and vulcanized to create custom O-rings that meet specific requirements.
Meridian has specialized in developing own rubber compounds for the most challenging practical fields over 30 years, we offers O-ring cord made of Viton/FKM, AFLAS, FVMQ and VMQ to solve the seal problem of special applications.
Advantages of O-ring Cord at a Glance
Media pressure strengthens the sealing function in the opera¬tional state
O-ring cord can be individually joined into round cord rings in the desired dimensions at the point of use
In the case of round cord rings: a high degree of flexibility thanks to customized dimensions
Why choose us

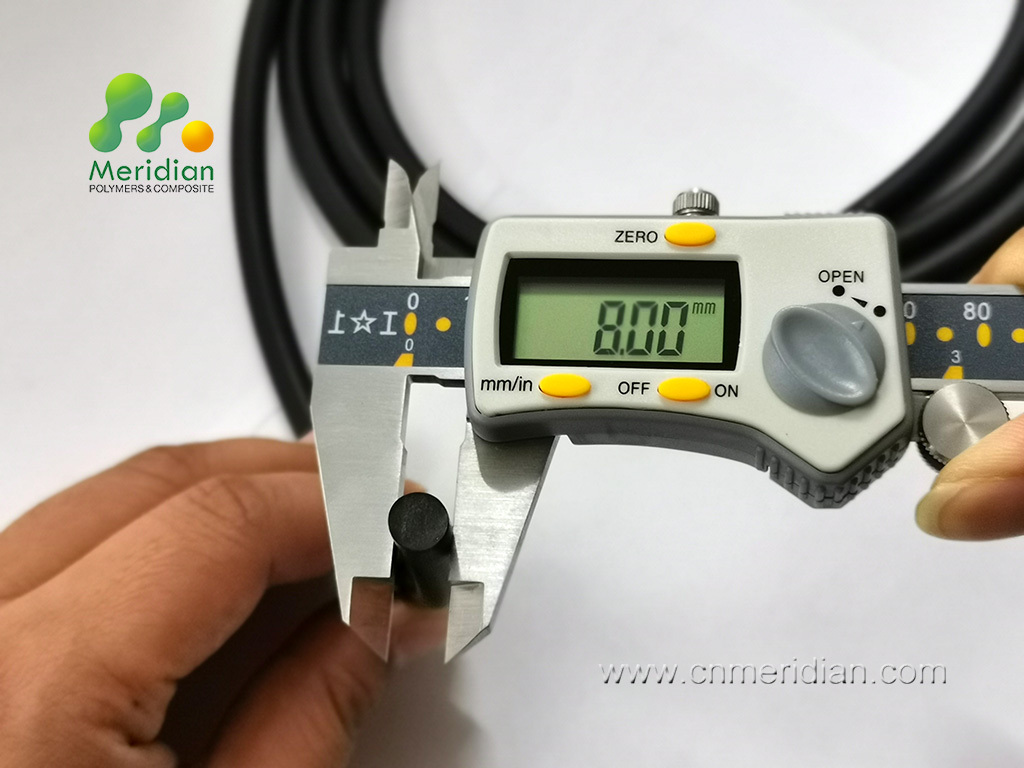

The available Cross-section Size from 1 to 50 mm and most O-ring cord are produced according to ISO 3302-1 E1 level.
|
Standard
|
Meridian Grand
|
ISO 3302-1:2014 E1
RMA E1
|
ISO 3302-1:2014 E2
RMA E2
|
|
>
|
≤
|
E0 SUPER PRECISION
|
E1 HIGH PRECISION
|
E2 PRECISION
|
|
0
|
1.5
|
± 0.08
|
± 0.15
|
± 0.25
|
|
1.5
|
2.5
|
± 0.10
|
± 0.2
|
± 0.35
|
|
2.5
|
4
|
± 0.12
|
± 0.25
|
± 0.4
|
|
4
|
6.3
|
± 0.17
|
± 0.35
|
± 0.5
|
|
6.3
|
10
|
± 0.20
|
± 0.4
|
± 0.7
|
|
10
|
16
|
± 0.25
|
± 0.5
|
± 0.8
|
|
16
|
25
|
± 0.35
|
± 0.7
|
± 1.0
|
|
25
|
40
|
± 0.40
|
± 0.8
|
± 1.3
|
|
40
|
63
|
± 0.60
|
± 1.0
|
± 1.6
|
|
63
|
100
|
± 0.80
|
± 1.3
|
± 2.0
|
Our factory has advanced production equipment and strict quality control system.
For ropes with special requirements, we implement corporate standards E0 level to provide customers with more accurate sealing.
