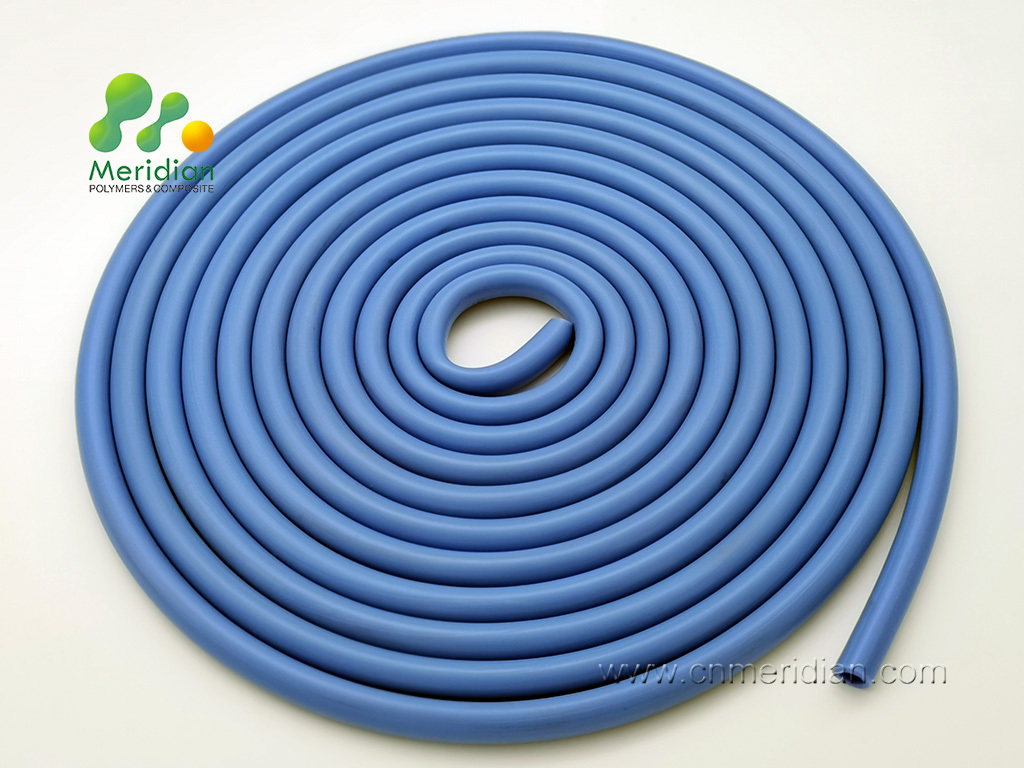

ound cords and round cord rings achieve their static sealing effect from the deformation of the cross section after installation and compression into the installation space. A round cord ring is similar to an O-ring. Round cord rings are often used for repairs and assembled to size on site.
Meridian offers round cords and round cord rings made of the materials VMQ/Silicone commonly.
Other material and cross section can be available upon customers’ request.
ADVANTAGES AT A GLANCE
*Media pressure strengthens the sealing function in the opera¬tional state
*Round cords can be individually joined into round cord rings in the desired dimensions at the point of use
*In the case of round cord rings: a high degree of flexibility thanks to customized dimensions
TOLERANCES
Accordance with ISO 3302-1 E3
DIMENSIONS
The currently available dimensions
| ITEM | Inch | Metric | Length | Material |
| CORDSI/1X30/70RR | 0.04 | 1 mm | 30 m | Silicone 60 |
| CORDSI/2X30/70RR | 0.079 | 2 mm | 30 m | Silicone 60 |
| CORDSI/3X30/70RR | 0.118 | 3 mm | 30 m | Silicone 60 |
| CORDSIIN/125X30/70RR | 0.125 | 30 m | Silicone 60 | |
| CORDSI/4X30/70RR | 0.157 | 4 mm | 30 m | Silicone 60 |
| CORDSI/5X30/70RR | 0.196 | 5 mm | 30 m | Silicone 60 |
| CORDSI/6X30/70RR | 0.236 | 6 mm | 10 m | Silicone 60 |
| CORDSIIN/250X10/70RR | 0.25 | 10 m | Silicone 60 | |
| CORDSI/7X10/70RR | 0.275 | 7 mm | 10 m | Silicone 60 |
| CORDSI/8X10/70RR | 0.313 | 8 mm | 10 m | Silicone 60 |
| CORDSI/9X10/70RR | 0.354 | 9 mm | 10 m | Silicone 60 |
| CORDSI/10X10/70RR | 0.394 | 10 mm | 10 m | Silicone 60 |
| CORDSI/12X10/70RR | 0.472 | 12 mm | 10 m | Silicone 60 |
| CORDSIIN/500X10/70RR | 0.5 | 10 m | Silicone 60 | |
| CORDSI/14X10/70RR | 0.55 | 14 mm | 10 m | Silicone 60 |
| CORDSI/15X10/70RR | 0.59 | 15 mm | 10 m | Silicone 60 |
| CORDSI/18X10/70RR | 0.708 | 18 mm | 10 m | Silicone 60 |
| CORDSIIN/750X10/70RR | 0.75 | 10 m | Silicone 60 | |
| CORDSI/20X10/70RR | 0.788 | 20 mm | 10 m | Silicone 60 |
